Titel: build Simulink model (arduino-uno as an input)
|
 |
| |
 |
 |
Hi all,
I'm using arduino uno with my Waycon sensor.
I'm trying to build a model in simulink where I can show the output result of my arduino-code.
First i succeeded to build this model in order to simulate this code which consist to represent the inpuls number/s of the waycon.
#include <Encoder.h>
Encoder myEnc(2, 3);
// avoid using pins with LEDs attached
void setup() {
Serial.begin(115200);
}
void loop() {
long newPosition = myEnc.read();
Serial.println(newPosition);
delay(10);

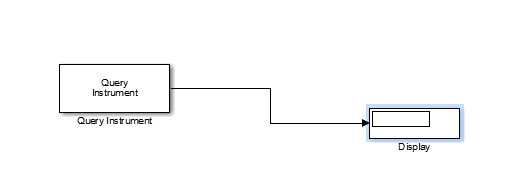

related simulink model: see attachment
Now I'm trying to build another Simulink model for this arduino code which consist to represent the inpuls number/s and the compilation time in the same time.
arduino-uno code:
#include <Encoder.h>
Encoder myEnc(2, 3);
// avoid using pins with LEDs attached
void setup() {
Serial.begin(115200);
}
void loop() {
long newPosition = myEnc.read();
Serial.println(newPosition);
delay(10);
unsigned long time;
Serial.print("Time: ");
time = millis();
Serial.println(time);
delay(1000);
}
I tried the same model so i get this error: esponse from instrument was non-numeric.
Could someone help me on this enquiry, how can i manage to show two results from arduino code in one simulink model . I'm quiet new and i already begin working on arduino and simulink
Many thanks in advance
