Verfasst am: 16.04.2012, 10:40
Titel: Timer unter Simulink / Dauer von Pulse messen
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Hallo zusammen,

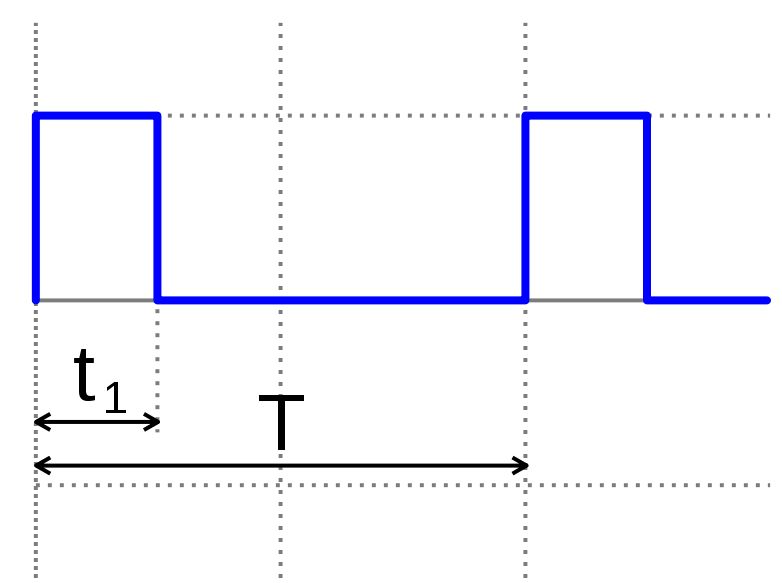

Ich arbeite mit Signalen die ein Pulse ( Lookup Table ) sehr ähnlich sind, und ich möchte die Dauer << t1 >> jede einzelne Signale messen und zusammen addieren ( siehe Anhang / bild ) . Hat sich vllt jemand mit sowas beschäftig ?
Ich bedanke mich für jede Hilfe
Beschreibung: |
|
![](images/icon_clip.gif) Download |
Dateiname: |
time intervall.jpg |
Dateigröße: |
26.69 KB |
Heruntergeladen: |
627 mal |
|
|
|
|
|
Falko83 |
![Forum-Anfänger Forum-Anfänger](images/rankst1.gif)
Forum-Anfänger
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 13
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 29.03.12
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 23.04.2012, 10:21
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Würde mich auch sehr interessieren
|
|
|
feynomen |
Themenstarter
![Forum-Anfänger Forum-Anfänger](images/rankst1.gif)
Forum-Anfänger
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 19
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 12.04.12
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 23.04.2012, 11:51
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Falko83 hat Folgendes geschrieben: |
Würde mich auch sehr interessieren ![Rolling Eyes Rolling Eyes](images/smiles/icon_rolleyes.gif) |
Axo, ich hab es heraus gekriegt... ein glück
|
|
|
Falko83 |
![Forum-Anfänger Forum-Anfänger](images/rankst1.gif)
Forum-Anfänger
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 13
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 29.03.12
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 23.04.2012, 11:55
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Und wie funktioniert das nun, komm da iwi nicht weiter?
|
|
|
feynomen |
Themenstarter
![Forum-Anfänger Forum-Anfänger](images/rankst1.gif)
Forum-Anfänger
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 19
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 12.04.12
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 23.04.2012, 13:19
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Falko83 hat Folgendes geschrieben: |
Und wie funktioniert das nun, komm da iwi nicht weiter? |

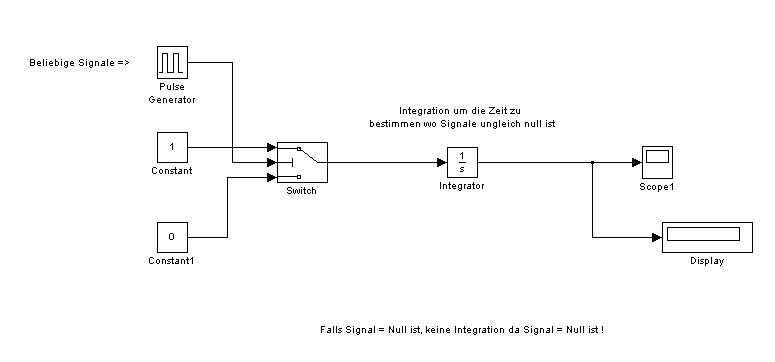

Schaue dir das Bild an... Bilder sind besser als 1000 worte.
Es wäre sehr nett von dir wenn du bescheid sagst ob es bei dir geklappt hat
Beschreibung: |
|
![](images/icon_clip.gif) Download |
Dateiname: |
Zeitmesser.jpg |
Dateigröße: |
19.11 KB |
Heruntergeladen: |
816 mal |
|
|
|
Falko83 |
![Forum-Anfänger Forum-Anfänger](images/rankst1.gif)
Forum-Anfänger
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 13
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 29.03.12
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 23.04.2012, 13:28
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Wunderbar, das sieht sehr gut aus und funzt, vielen Dank!
|
|
|
feynomen |
Themenstarter
![Forum-Anfänger Forum-Anfänger](images/rankst1.gif)
Forum-Anfänger
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 19
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 12.04.12
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 23.04.2012, 13:53
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
Falko83 hat Folgendes geschrieben: |
Wunderbar, das sieht sehr gut aus und funzt, vielen Dank! |
Freut mich und danke für den Feedback !
|
|
|
flozzy |
![Forum-Newbie Forum-Newbie](images/rankst0.gif)
Forum-Newbie
|
![](templates/vSpiralFull/images/spacer.gif) |
Beiträge: 2
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Anmeldedatum: 16.11.11
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Wohnort: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
![](templates/vSpiralFull/images/spacer.gif) |
Version: ---
|
![](templates/vSpiralFull/images/spacer.gif) |
|
|
![](templates/vSpiralFull/images/_postbit_left_divide.gif) |
|
Verfasst am: 27.04.2012, 13:46
Titel:
|
![](templates/vSpiralFull/images/_postbit_header_right_right.gif) |
wie läuft das denn mit fixed steps? ein integrator funktioniert da nicht...
